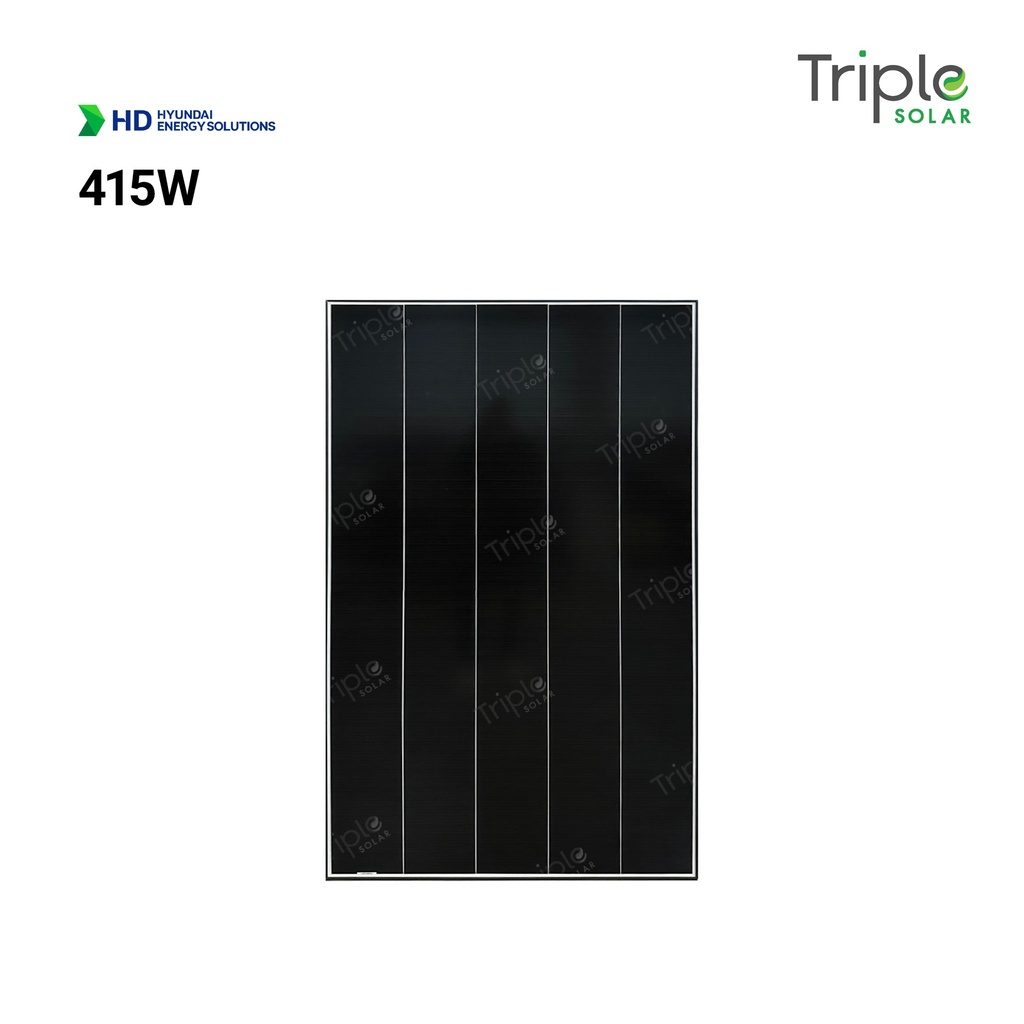

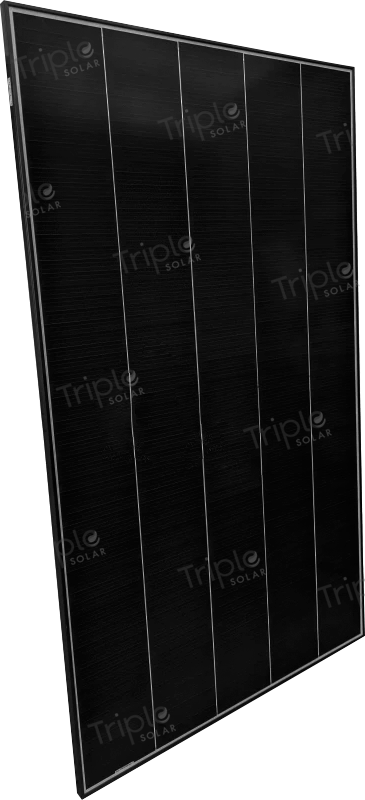

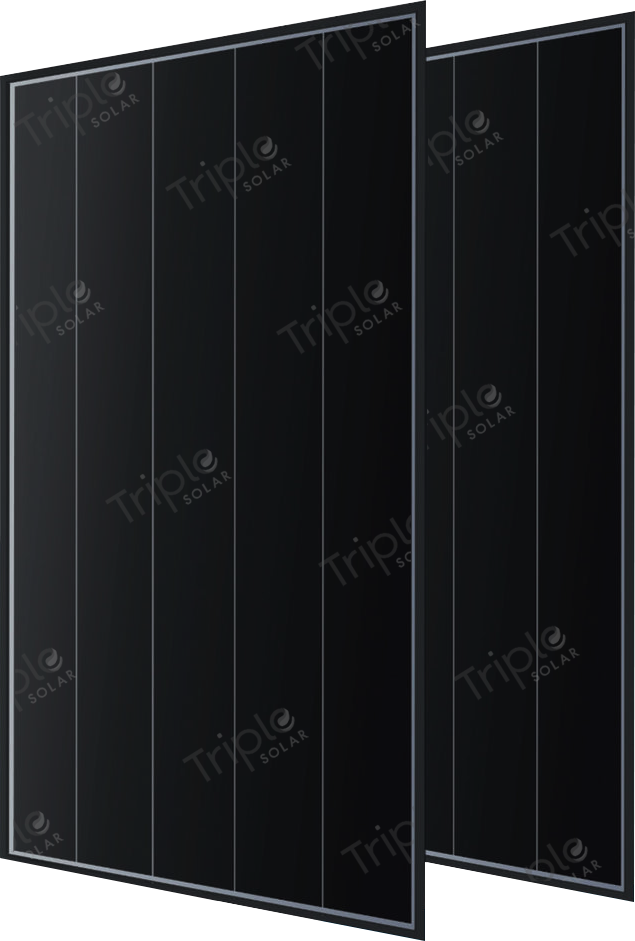

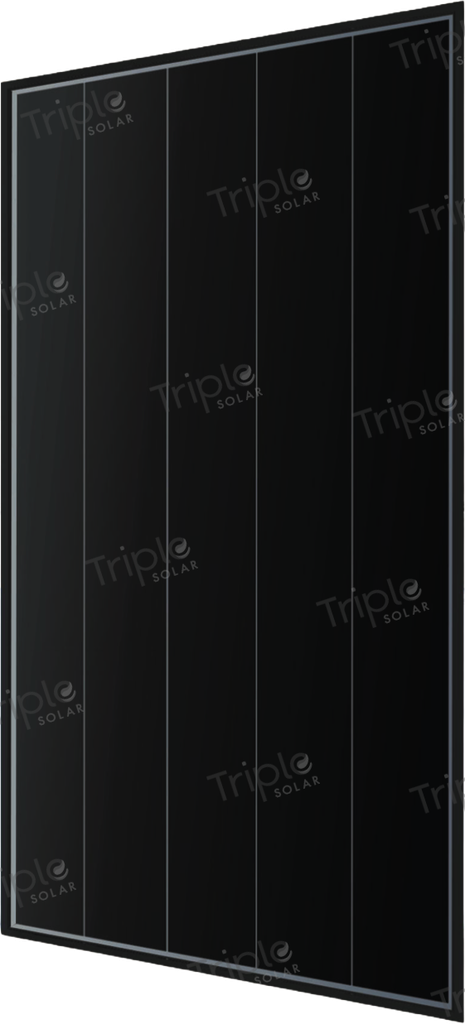

HYUNDAI HiE-S415DG BLACK&WHITE
The HYUNDAI module with a power class of up to 415 Wp, an efficiency of up to 20.9% and a 25-year performance guarantee:
• Best price-performance ratio
• Ideal for rooftop systems (more power can be installed with the same roof area compared to standard modules be)
• Low LCOE (Electricity Levelized Costs).
HYUNDAI modules are based on shingle technology, which enables a higher cell density than conventional half-cut modules. Shingle image: Henkel The cells are cut into 5 or 6 pieces. The resulting “shingles” are assembled into strings by joining the leading and trailing edges of successive shingles with an electrically conductive adhesive (ECA). The ECA replaces the copper interconnect tapes that are normally soldered onto the solar cells, providing a flexible connection and avoiding thermal/mechanical stress on the silicon-copper interface.
15year limited product warranty
Product details
Cell type: 305 Cells G12 PERC Mono-crystalline Shingled 210x210 mm
Dimensions: 1812 x 1096 x 30 mm (H x W x D)
Weight [kg] 20.8 kg
Anti PID
Reduced hot spot loss
25 year performance guarantee
15year product guarantee
System voltage: 1500 volts

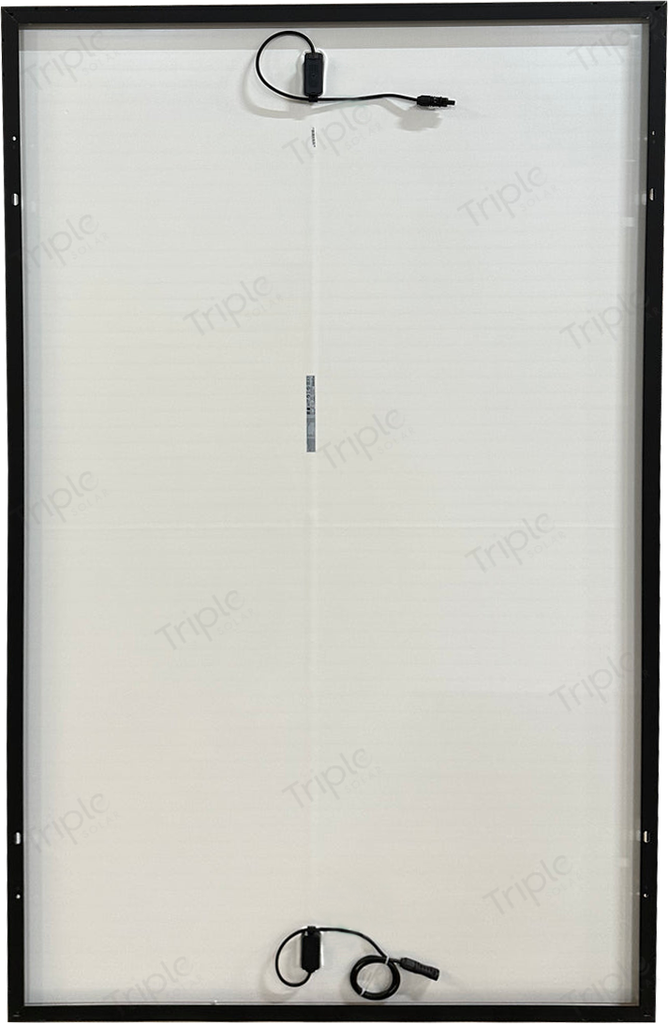

Connector type: MC4 Evo-2
Cable length: 1200mm
Protection class: IP68 - 2 bypass diodes
Module Efficiency up to 20.9%
Certificate: TUV, CE
Pieces per PU: 36
Safety Class: Class II
Withstands wind loads up to 2400Pa and snow loads up to 5400Pa
| Cell Type: PERC Mono-Crystalline Silicon Shingled |
| Frame Colour: Black Frame |
| Panel Power: 415 W |
| Panel Backsheet: White backsheet |
| Efficiency: 20.9% |
| Maximum Installation System Voltage (DC): 1500V |
| Product Warranty: 15 Years |
| Performance Warranty: 25 Years |
