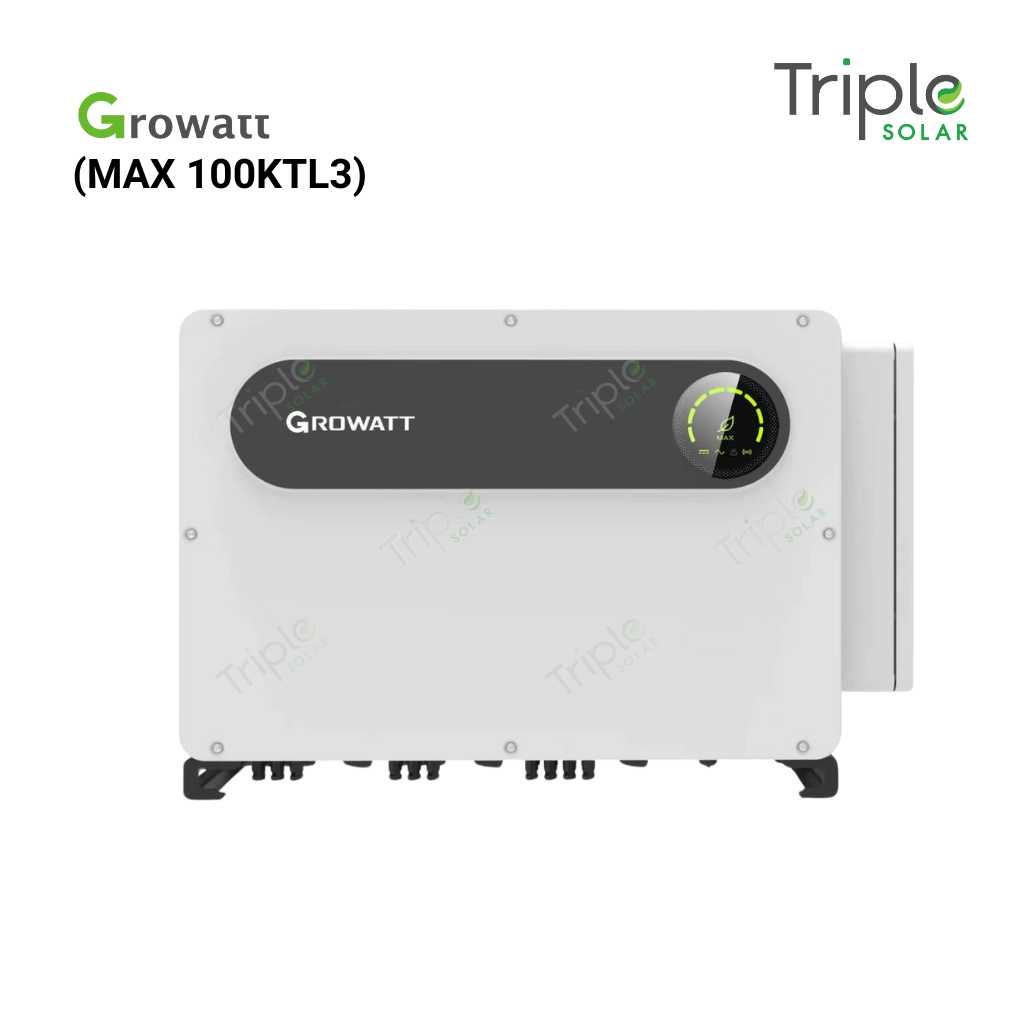

Growatt String (MAX 100KTL3 LV)
The latest and most powerful Growatt inverter yet. The MAX TL3 inverters are ideal for medium- to large-scale commercial roofs and ground-mount projects. With 10 MPPTs as standard, the 100 KTL3 inverter offers unparalleled design flexibility when it comes to string configurations. Lightning and fire protection are also included as standard, along with IV diagnosis on individual strings to detect any issues.
AC attributes
Max power: 100kW
Max current: 167.1A
Number of phases: 3
DC attributes
Number of MPPT: 10
Strings per MPPT: 2
V range of MPPT: 180 - 1000V
Max Isc current: 40A per MPPT
Max voltage: 1000V
Start up voltage: 195V
System
Max efficiency: 98.8%
IP rating: IP66
Weight: 84kg
Dimensions: 970*640*345mm
Warranty (extensions): 5 years (10 years)
Key features
- 10 MPPTs fuse free design
- Maximum efficiency of 98.8%
- Smart I/V scan and diagnosis.
- AC & DC type II SPD
- IP66 protection
| Brand: Growatt |
| Phases: 3-Phase |
| Inverter type: Multi MPPT Strings |
| Inverter Size: 100Kw |
| No. of MPPT: 10 |
| Max Isc per MPPT: 40 A |
| Rated Output Current: 183.8 A |
| Max Recommended PV Power: 100000 W |
| Start-up Voltage: 195 V |
