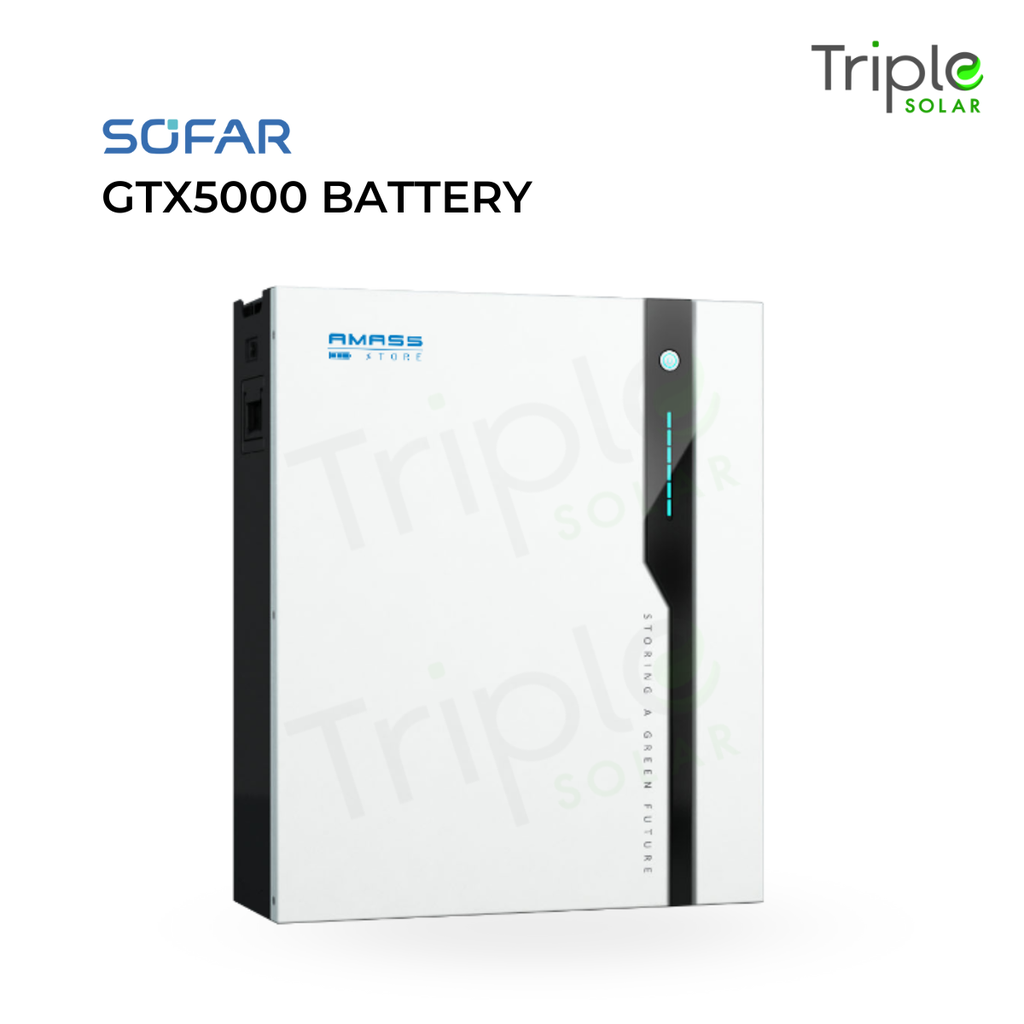

Sofar Amass GTX5000 Battery 4.6kWh

Sofar Solar specialise in the design and manufacture of a wide range of inverters, energy storage systems and EV charging solutions. Established in China in 2013, Sofar Solar are now a worldwide presence in the renewables market and have been recognised as a ‘Top PV Brand’ by EuPD, including in the UK.

The Sofar AMASSTORE GTX5000 is an energy storage unit, designed to be used in residential on-grid applications with the capability for short-term backup.

The battery has built-in BMS (battery management system), which can manage and monitor cell information, including voltage, current and temperature. In addition, the BMS can balance cell charging to extend cycle life. Various protection functions are included, such as over-discharge, over-charge, over-current and high/low temperature.

Multiple batteries can be connected in parallel using the GTX5 Battery Parallel Cable.

TECHNICAL SPECIFICATION

• Battery type: LiFePO4,Lithium Iron Phosphate
• Nominal capacity: 100AH
• Nominal voltage: 51.2Vdc
• Total energy: 5120Wh
• Scalable: Up to 4
• Protection: IP20
• Weight: 55kg
• Dimensions: 480 x 211.5 x 600mm
