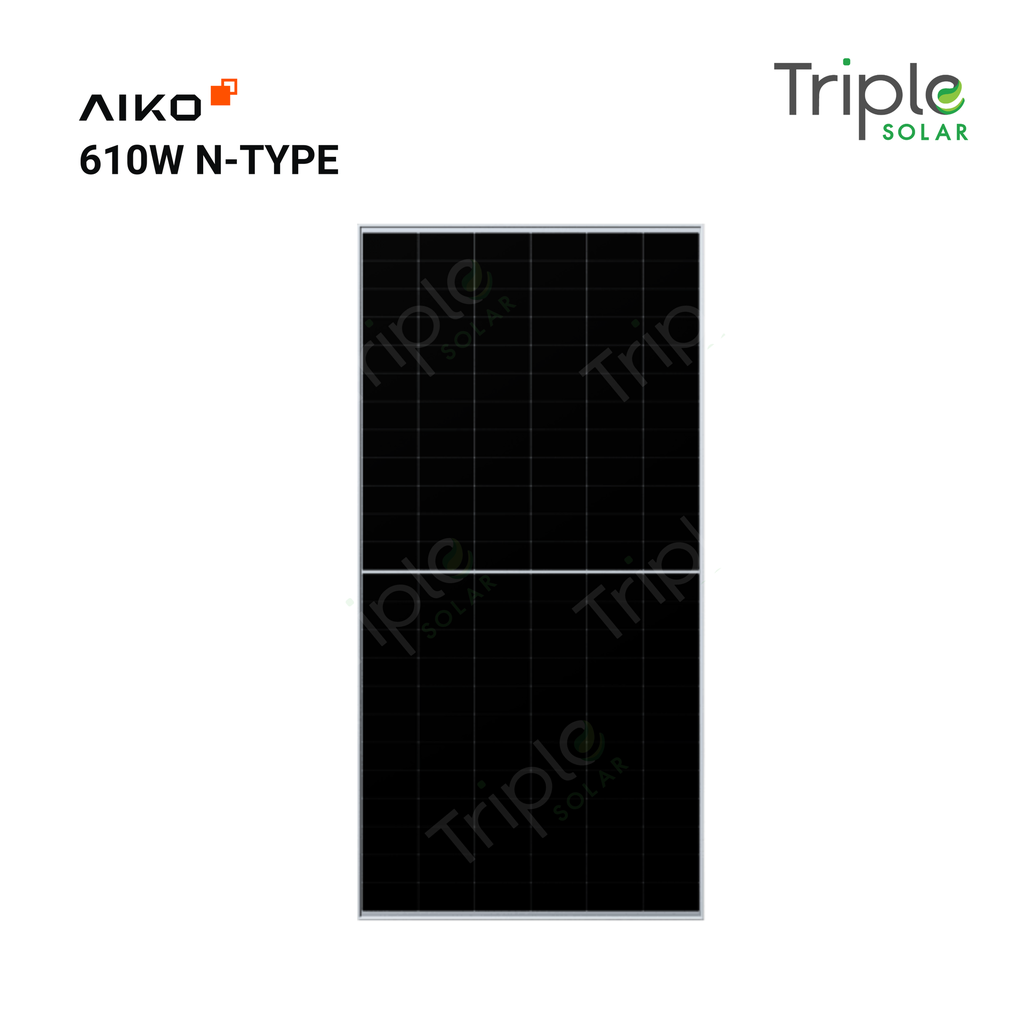

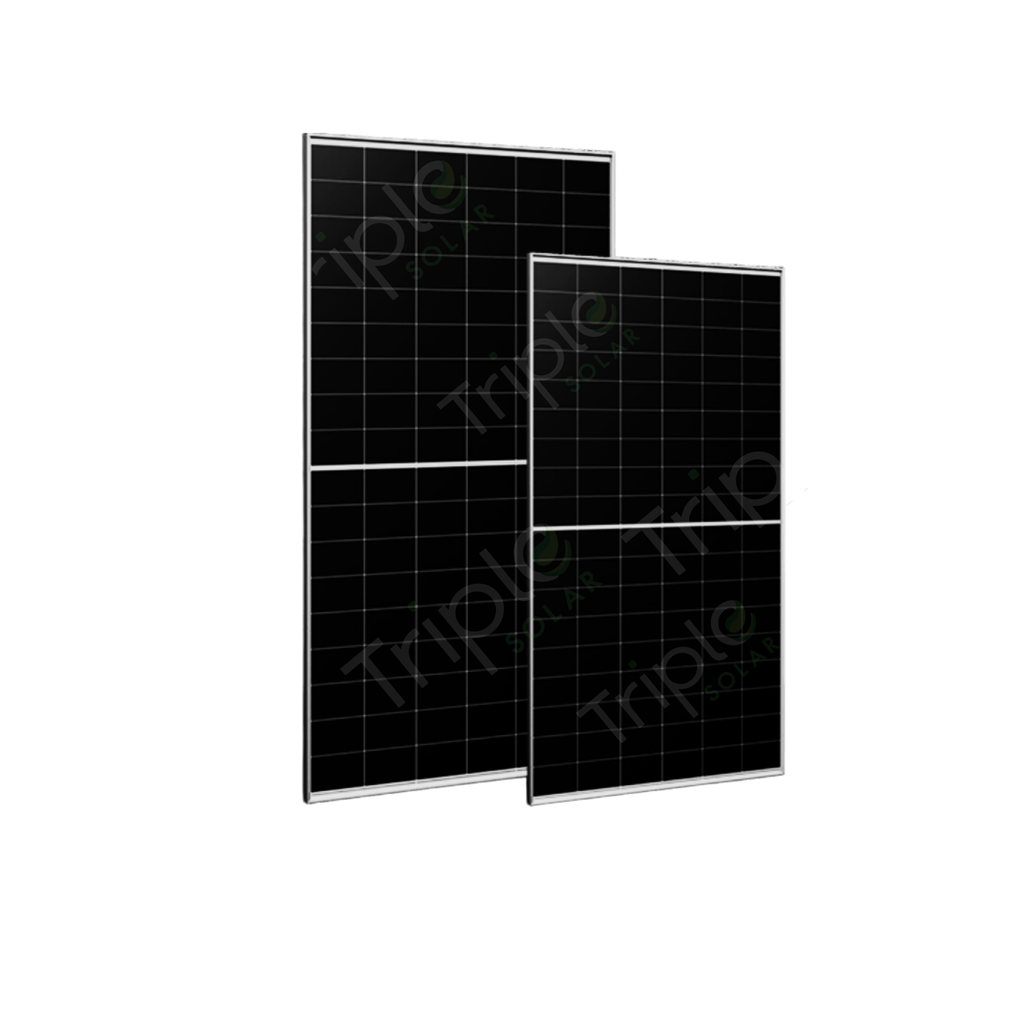

AIKO 610W Solar panel Silver Frame
N-Type ABC (Mono-glass Module)
The Aiko 610 W N-type module is the most efficient on the market, reaching up to 24%, due to its ABC technology.
Features
- Full area illuminated
- All c-Si atoms electricity-producible technology
- All back electrode technology
- All back passivating contact technology
- Totally Ag-free metallization technology
- Whole Life-cycle hot-spot risk control and Power generation guarantee technology
General information
| Manufacturer | AIKO |
| Type | N-Type ABC (Mono-glass Module) |
| Category | Mono |
| Kind | New products |
| Condition | New |
| Age | New |
| Spare part | No |
Details
| Nominal capacity | 610 Wp |
| MPP current | 13.56 A |
| MPP voltage | 45.01 V |
| Short circuit current | 14.04 A |
| Open circuit voltage | 53.49 V |
| Max. Voltage | 1500 V |
| Length | 2278 mm |
| Width | 1134 mm |
| Depth | 35 mm |
| Weight | 28.2 kg |
This product is no longer available.
| Cell Type: N-type ABC |
| Frame Colour: Silver Frame |
| Panel Power: 610 W |
| Panel Backsheet: White backsheet |
| Efficiency: 23.6% |
| Maximum Installation System Voltage (DC): 1500V |
| Application: Commercial |
| Product Warranty: 15 Years |
| Performance Warranty: 30 Years |
