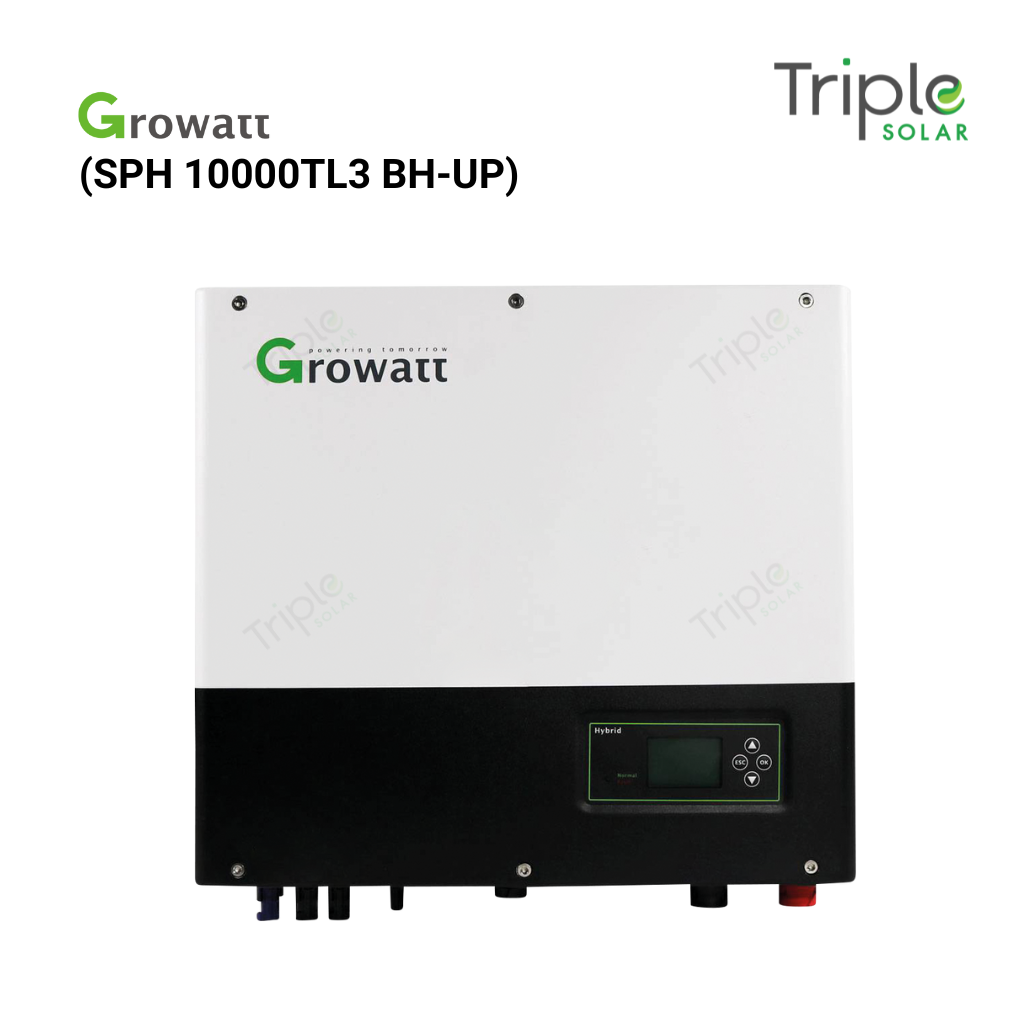

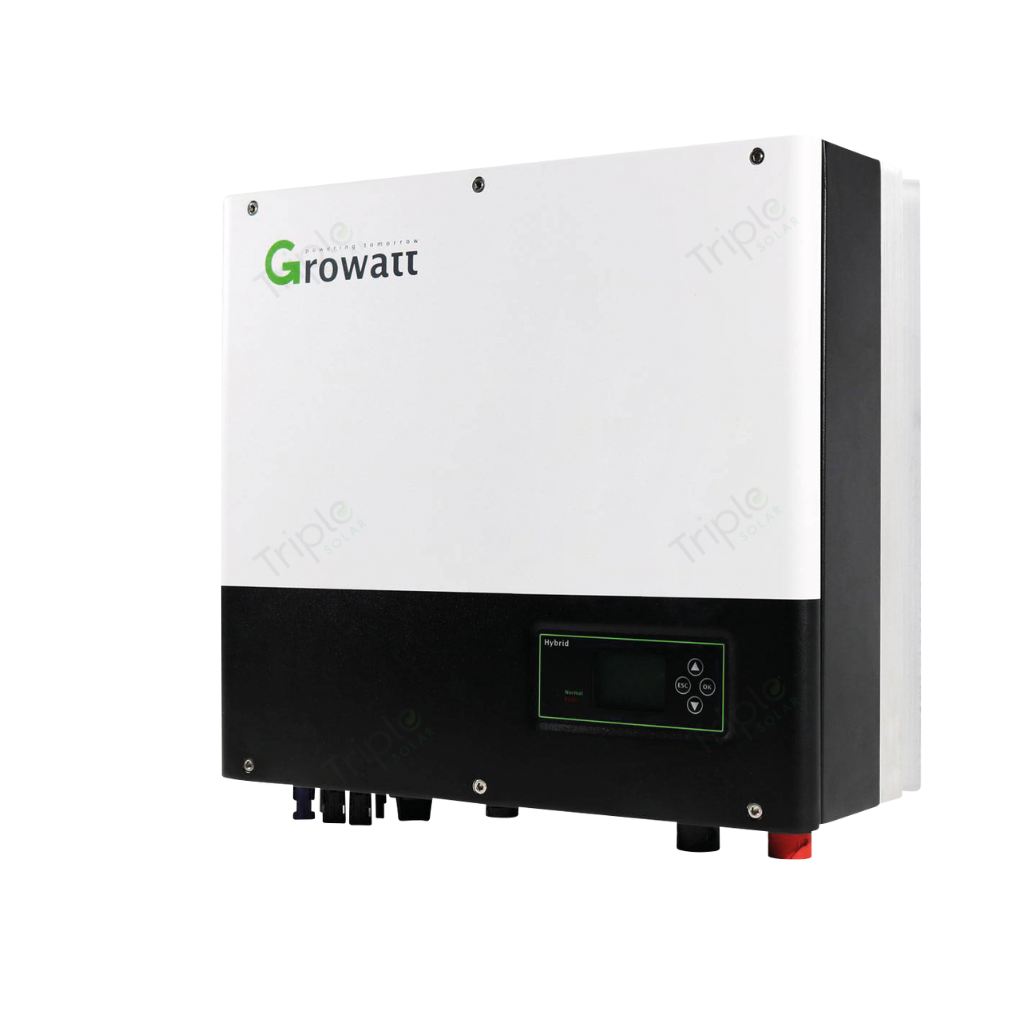

Growatt 10Kw 3 phase hybrid inverter, 2 MPPT

https://triplesolar.co.uk/web/image/product.template/1202/image_1920?unique=cc2adbe
(0 review)

The Growatt SPH 10000TL3-BH-UP hybrid inverter features a 10ms UPS function, 100% three-phase imbalance output, and smart phase-level power control. It has a Type II SPD on the DC and AC sides for surge protection and supports a DC/AC ratio of up to 1.5 with dual MPP trackers. The inverter boasts a maximum efficiency of 98.2% and is compatible with both lithium and lead-acid batteries. It has a compact design with an LCD display and four buttons, using natural cooling without fans and an IP65 protection rating. The 10kW model supports a maximum recommended PV power of 13000W, a maximum DC voltage of 1000V, and a maximum charging and discharging current of 25A.

Please Sign in or Register to see Trade Prices

1495.0 GBP £ 1,495.00 Tax Excluded £ 1,782.00

£ 1,388.86 Tax Excluded £ 1,782.00

  • Brand
  • Phases
  • Inverter type
  • Inverter Size
  • No. of MPPT
  • Max Isc per MPPT
  • Rated Output Current
  • Max Recommended PV Power
  • Start-up Voltage

This combination does not exist.

Out of Stock
Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
Contact Us
Brand: Growatt
Phases: 3-Phase
Inverter type: Hybrid
Inverter Size: 10Kw
No. of MPPT: 2
Max Isc per MPPT: 16.9 A
Rated Output Current: 15.2 A
Max Recommended PV Power: 15000 W
Start-up Voltage: 120 V

Terms and Conditions
 Shipping: 1-2 Business Days
