As solar energy continues to expand across residential, commercial, and industrial sectors, so does the responsibility to ensure systems are built with the highest possible safety standards.
Europa’s Solar Guardian stands out as the most dependable, and installer-friendly rapid shutdown device on the market today. Engineered to deliver exceptional performance and unmatched protection, it is redefining what safety looks like in modern photovoltaic installations.

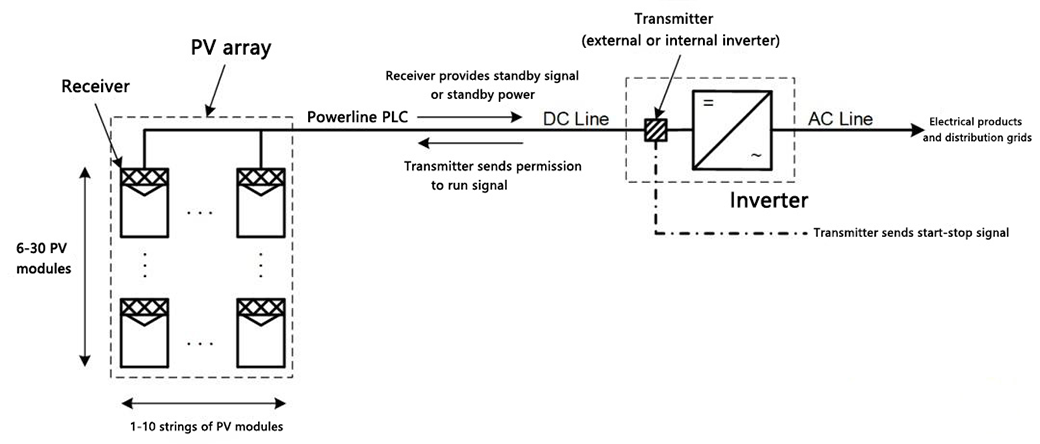

What Is a Rapid Shutdown Device?
Rapid Shutdown devices were originally invented to provide firefighters with a way to quickly de-energise the DC side of a solar PV system during emergencies. Although many assume turning off the inverter cuts all power, this is not the case. Solar panels will continue generating electricity as long as they are exposed to sunlight, meaning high-voltage DC power still flows through system wiring.
In the event of a fire, firefighters often need to climb onto roofs or cut into them to ventilate a burning structure—actions that can bring them dangerously close to live solar system’s conductors and wires. A rapid shutdown device eliminates this risk by halting electricity generation, allowing emergency crews to work safely without the fear of electric shock.
Beyond emergency response, rapid shutdown capability is now increasingly required by many UK insurance providers before issuing or renewing policies for properties with PV systems. This makes compliant systems not only safer, but also more insurable.
Solar Guardian: The New Standard in Rapid Shutdown Technology
Europa’s Solar Guardian was purpose-built to offer the highest level of DC safety for modern PV installations. This device raises the bar for reliability, and performance, and the isolation switch is fully TÜV, CE, CB and SAA certified.
Unmatched Safety for First Responders
The Solar Guardian enables emergency personnel to safely isolate AC power while the device’s built-in auto-disconnection feature immediately shuts off DC power.
The device disconnects the connected strings during faults, overloads, or maintenance, reducing fire and shock risks. Engineered to address the unique hazards associated with live DC electricity and solar panels that become damaged in high stress situations. Examples of such hazards could be an electrical fire, structural damage, or extreme weather conditions.
Automatic Protection During Faults or Power Loss
The Solar Guardian will automatically switch to the off position, interrupting the DC connection between the solar panels and the inverter, automatically whenever the AC supply is disrupted for more than five seconds. Once AC power has been restored for longer than five seconds, it reactivates, restoring the DC connection. It also includes a Manual Shutdown option if required.
High Electrical Performance
- Supports up to 5 strings
- 55A max current / cuts currents up to 38A
- Max voltages up to 1500V
- Integrated temperature sensor triggers shutdown at 70°C
Built for Every Environment
Its IP66-rated enclosure ensures long-term durability in all weather conditions, with a waterproof vent valve to prevent condensation. Its slide-out mounting plates on both sides of the back lid help with quick and easy surface mounting.

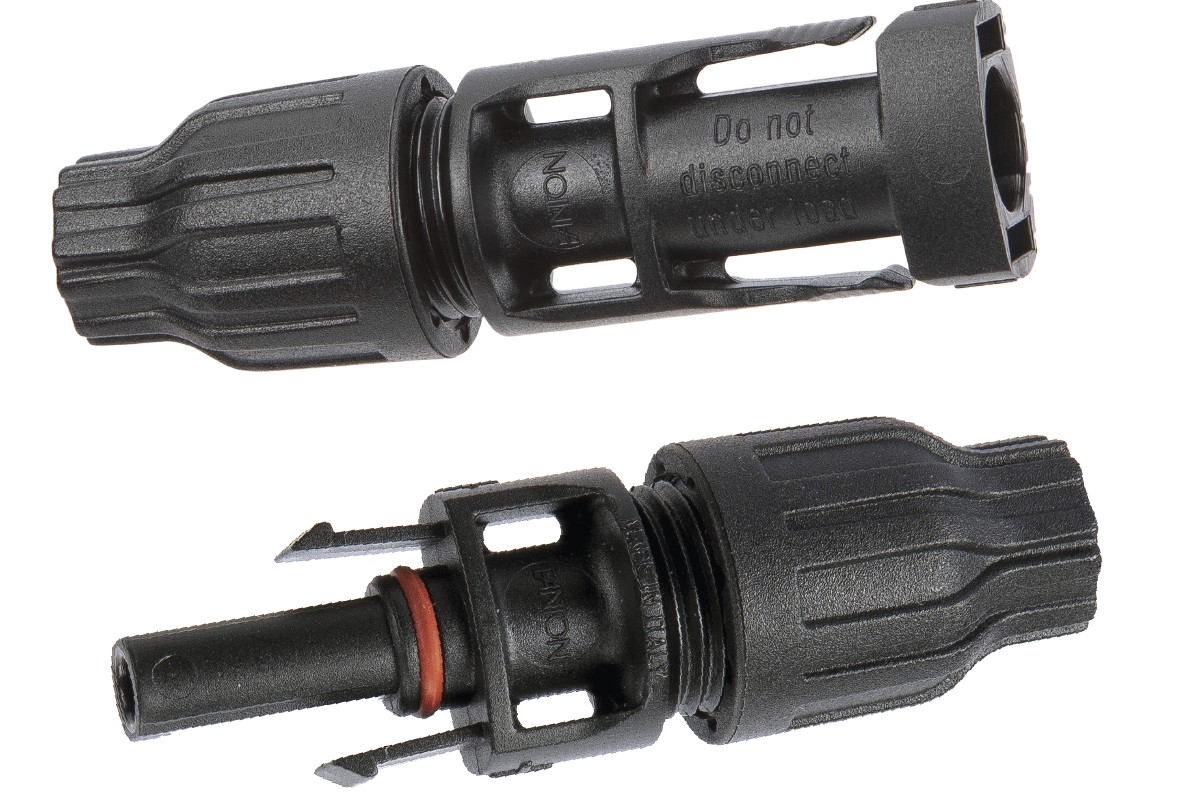

Fast Connect Tools: Enhancing Safety and Install Speed
To complement the Solar Guardian’s safety features, Europa recommends using Fanton fast connect tools, such as the supplied Fanton PV FMC4. These connectors dramatically improve installation safety and efficiency by reducing setup time by up to 50% and eliminating crimping errors.
The construction of the spring clamp allows you to firmly lock the conductor of the solar cable and ensure exceptional current transmission, thanks to the large contact surface.
- Providing IP65/IP68 protection
- Featuring patented Twinlock technology for secure, tool-less connections
- Allows for a 40A rated current and 1500V rated voltage
- Operating between -40°C to 85°C
- Upper temperature limit of 120°C

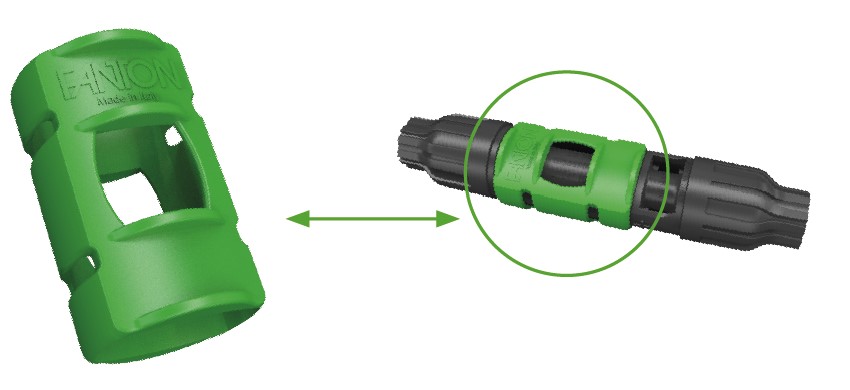

Connector Locking System: The Final Layer of Protection
For maximum safety, installers can add the Fanton locking system over the PV FMC4 connectors. These locks ensure that male and female connectors remain securely in place, preventing partial connections—a common cause of dangerous DC arcing.
The locks can only be removed with a dedicated tool, providing an additional safeguard against accidental disconnection and significantly reducing the risk of arc-fault fires.
As solar technology evolves, so must the safety systems that protect the people who install, own, and respond to emergencies involving PV equipment. Europa’s Solar Guardian is more than a rapid shutdown device—it is a comprehensive safety solution that brings together intelligence, durability, and installer-friendly design.
From automatic DC isolation during faults, to certified high-performance components, fast-connect technology, and advanced connector locking systems, the Solar Guardian sets a new benchmark for PV system protection.
For installers who want the safest, most reliable choice on the market, the Solar Guardian is the clear leader—redefining rapid shutdown and helping create a safer future for solar energy.
